Need Help with Part Numbers

[skymstr02]

I've got an O-2A, with the Ozone hydraulic power pack. The military illustrated parts catalog doesn't have the O rings that go on the gear door spool and the solenoid on the front of the power pack, and I can't find my 337 parts book since my last move.

Can someone with a 1965-1969 337 parts catalog look those numbers up for me please? There are four O rings on the spool, and the one O ring on the solenoid.

Thanks!

Dave

[Ernie Martin]

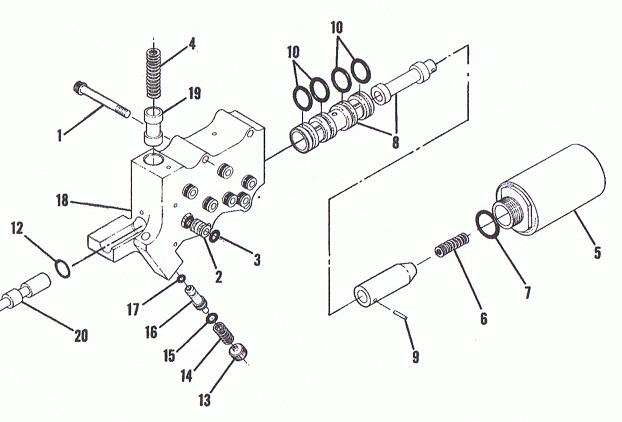

The figure below is the power pack manifold assy for Cessna 337 1965-1969. Item 5 is the solenoid and item 8 is the sleeve and spool. Item 7 P/N is MS28775-018 and item 10 P/N is MS28775-016.

Ernie

[skymstr02]

Thanks Ernie!

Dave
